A deceptively small package. Huge crime-stopping capabilities.

vehicle_mini_v2

Features

Dynamic coverage area

Dynamic coverage area

Autonomously repositioned coverage areas of up to 60 video streams on multiple searches.

icon_05

Third - entity sharing

Anticipate crimes through actionable data sharing between jurisdictions to the extent you desire.

icon_03

Up to five operator accounts

Five video surveillance officers, empowered by vehicleDRX, can boost the productivity of most law enforcement video surveillance networks.

icon_08

ACS® Services

Manage user accounts, deploy updates and new versions, and supervise system health and performance—all in one place.

As revolutionary as it is compact

vehicleDRX Mini® will propel your video surveillance network into the next technological era, where machines and people collaborate as allies for the benefit of humankind.

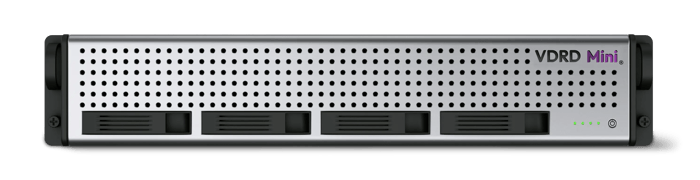

vehicleDRX Mini

128 Cores

512 GB of memory

2 NVIDIA® A100 GPUs

12 TB of storage

vehicledrx

Maximum security and seamless integration

Every model of our video analytics product guarantees the protection of all your sensitive data through a simple installation process that includes the following features:

Onsite server

All versions of vehicleDRX come with a VDRD® server dedicated exclusively to vehicleDRX, ensuring the best performance and reliability on the market.

Compatible with any VMS and IP camera

Our application runs on and communicates with the standard technology used at most Security Operations Centers.

Plug–and–play installation

We integrate vehicleDRX into your video surveillance network in three steps: connection, configuration, and calibration. As easy as it sounds.

GPUs

2 NVIDIA® A100 SXM4 GPUs (80 GB)

Processors

AMD EPYC 7713: 2 x 64 cores, 128 threads, 2.00 GHz base

System memory

512 GB of 3200 MHz ( 8 slots x 64 GB)

Operating system drive

4 TB PCI-E 4.0 NVMe SSD

Additional storage drives

4 TB PCI-E 4.0 NVMe SSD
4 TB SATA SSD

Networking

10 Gigabit Dual Port Ethernet + Dual 10 GB SFP+ (Fiber optic adapter)

Power

2 redundancy sources of power of 2200 W
AC input of 200-240V~/ 12.6A, 47-63Hz

Dimensions and weight

Form factor: 2U rackmount
Width: 17,64 inches (448 mm)
Height: 3,42 inches (87.5 mm)
Depth: 31.5 inches (800 mm)

Front I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 MLAN
Power button with LED
ID button with LED
Reset button
NMI button
System status LED
HDD access LED

Rear I/O

2 x RJ45 ports
1 x MLAN

Facility requirements

Rack space:
2U; horizontal placement
Rack with a depth of at least 31.5 inches
Weight capacity of 88 lbs
Network:
1Gb/10-Gb fiber optic /Ethernet connection
Power supply:
2x connections of 200-240V~/ 12.6A, 47-63Hz
Working conditions:
50 °F to 95 °F
Relative humidity 8% to 80%, without condensation
Storage conditions:
Relative humidity -40°F to 140°F, without condensation
20% to 95% non-condensing
