It detects and responds everywhere, at all times.

vehicleDRX Max

Features

icon_01

Dynamic coverage area

Autonomously repositioned coverage areas of up to 480 video streams on multiple searches.

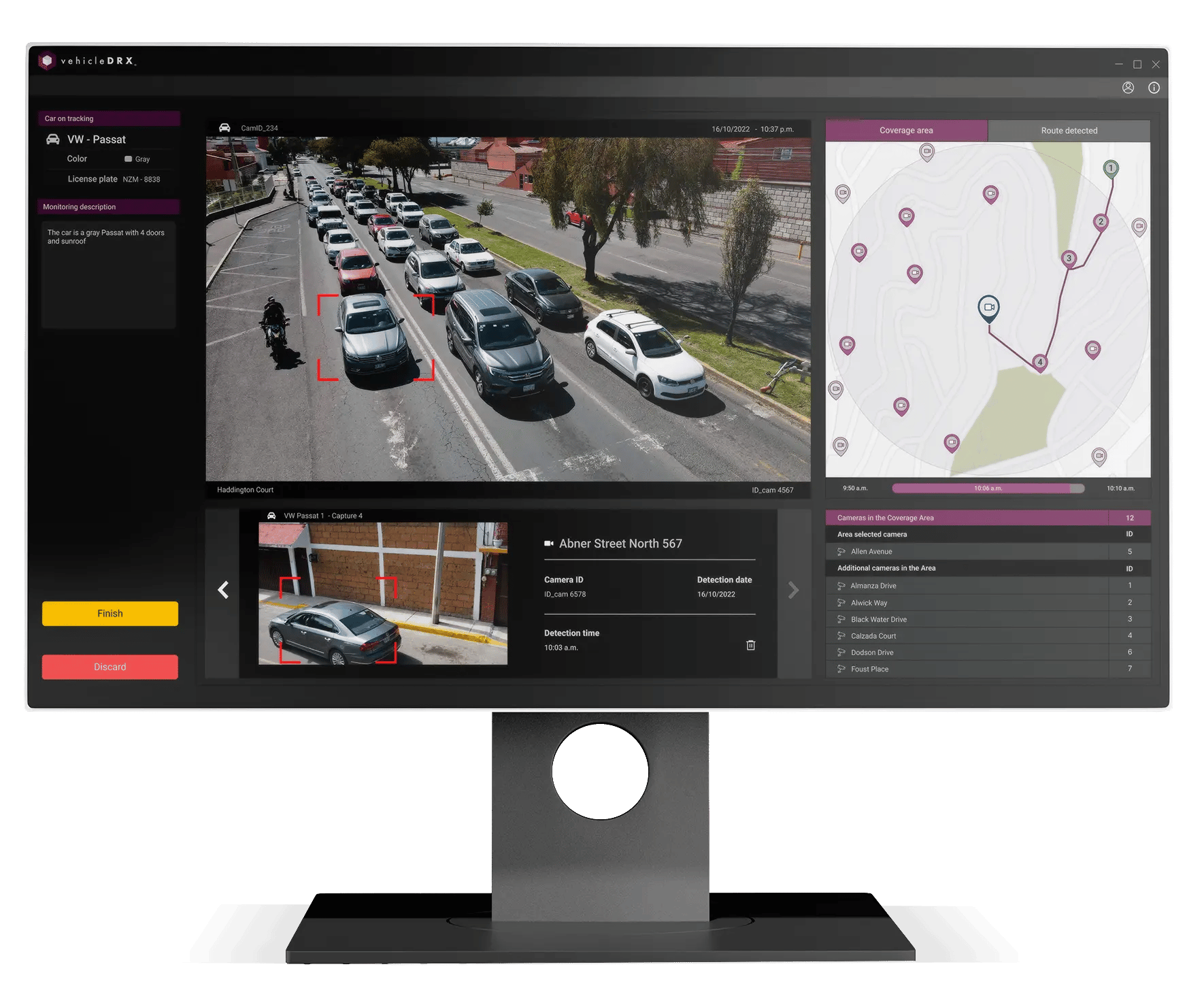

Forensic Search and Track

Forensic Search and Track

Search and track a motor vehicle, through stored video footage, and follow the target to its last recorded whereabouts in a given area.

icon_03

Up to 40 operator accounts

Allocate all of your resources to one or up to 40 different events, intelligently distributed amongst surveillance officers.

icon_04

Unlimited supervisor accounts

Have maximum control over your operations. Create as many Supervisor accounts as needed to manage activities and resources.

icon_05

Third - entity sharing

Anticipate crimes through actionable data sharing between jurisdictions to the extent you desire.

icon_06

Advanced analytics and reporting

The most complete analytics module to derive actionable insights from historical data and enable robust case reporting.

icon_07

Customized civilian and officers apps

Allow officers to coordinate specific responses to events and enable civilians to report a potential crime through two dedicated apps.

icon_08

ACS® Services

Manage user accounts, deploy updates and new versions, and supervise system health and performance—all in one place.

Designed for maximum potential video surveillance operations

vehicleDRX Max® is our top-of-the-line video analytics product for law enforcement, without rival on the market.

vehicleDRX Max

256 Cores

2048 GB of memory

16 NVIDIA® A100 GPUs

54.72 TB of storage

vehicledrx

Maximum security and seamless integration.

Every model of our video analytics product guarantees the protection of all your sensitive data through a simple installation process that includes the following features:

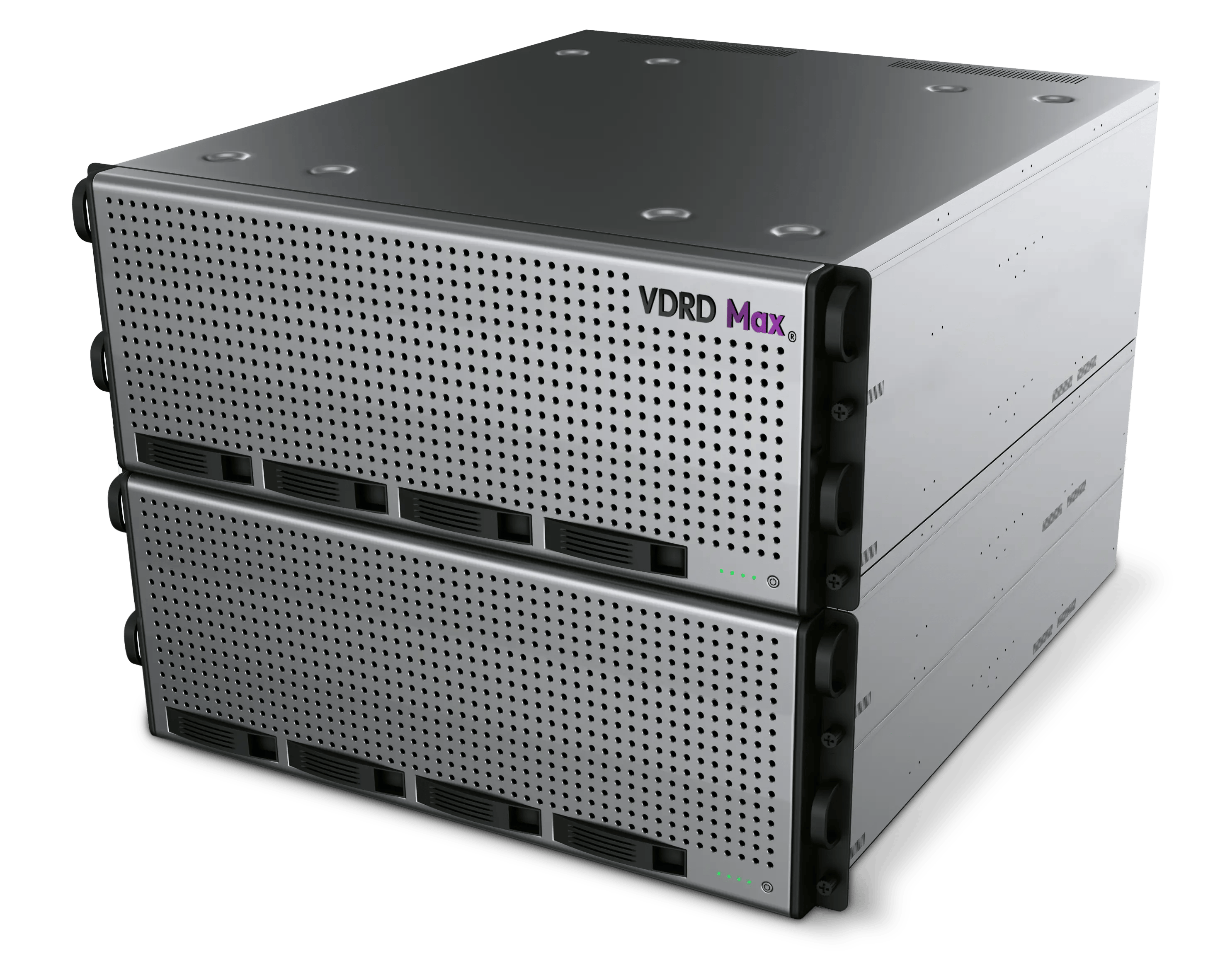

Onsite server

All versions of vehicleDRX come with a VDRD® server dedicated exclusively to vehicleDRX, ensuring the best performance and reliability on the market.

Compatible with any VMS and IP camera

Our application runs on and communicates with the standard technology used at most Security Operations Centers.

Plug–and–play installation

We integrate vehicleDRX into your video surveillance network in three steps: connection, configuration, and calibration. As easy as it sounds

GPUs

2x
8 NVIDIA A100 GPUs (80GB)

Processors

2x
2x AMDS EPYC 7763: 64 cores, 128 threads, 2.45 GHz base

System memory

2x
1024 GB of 2666 MHz (16 slots x 64 GB)

Operating system drive

2x
4 TB PCI-E 4.0 NVMe SSD

Additional storage drive

2x
15.36 TB PCI-E 4.0 NVMe SSD
8 TB SATA SSD

Networking

2x
10 Gigabit Dual Port Ethernet (integrated) + Dual 10GB SFP+ (Fiber optic adapter)

Power

2x
3 x 2200W redundant PSUs (2 mains sources and 1 backup)
AC Input: 200-240V~/ 12.6A, 47-63Hz

Dimensions and weight

2x
Form factor: 4U rackmount
Width: 17.6 inches (44.8 cm)
Height: 6.9 inches (17.6 cm)
Depth: 34.6 inches (88.0 cm)
Server weight; 131.4 lbs (59.6 kg)

Cooling Unit

2x
Rackmount; 3U; vertical placement
Height: 4.1 inches (10.3 cm)
Width: 17.3 inches (44.9 cm)
Depth: 22.4 inches (57.7 cm)
Weight (with coolant): 27 lbs (12.24 kg)

Front I/O

2x
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
Power button with LED
ID button with LED
Reset button
NMI button
System status LED
HDD access LED

Rear I/O

2x
2x RJ45 ports
1 x MLAN

Facility requirements

2X PRO

Server Rack Space:
4U, horizontal placement
Rack with a depth of at least 34.6 inches
Weight capacity of 132 lbs
Cooling Unit Rack Space:
3U, vertical placement
Rack with a depth of at least 22.4 inches
Weight capacity of 33 lbs
Network:
10-Gb fiber optic/ethernet connection
Power supply:
3x connections of 200-240V~/ 12.6A, 47-63Hz
Working conditions:
50°F to 95°F
Relative humidity 8% to 80%, without condensation
Storage conditions:
-40°F to 140°F
Relative humidity 20% to 95%, without condensation
